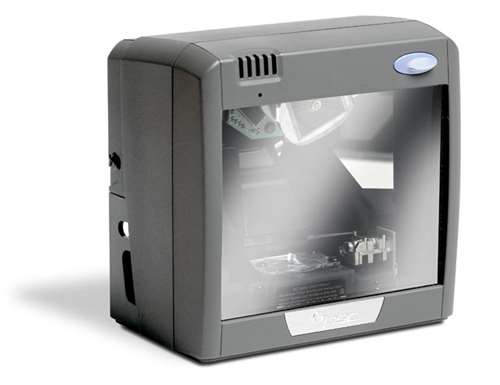

Magellan 2200Vs Vertical Scanner (Standard Config, Us Power Supply, Standard Mount, Rs232 Cable, Dsub 9P 15 Feet)

Decoding Capability

    * 1D / Linear Codes
          o Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
    * Stacked Codes
          o GS1 DataBar Expanded Stacked
          o GS1 DataBar Stacked
          o GS1 DataBar Stacked Omnidirectional

Electrical

    * AC Power Requirements
          o AC Input
                + 90-265 VAC, 47-63 Hz
          o Power Consumption
                + Operating (Maximum)
                      # 9.6 Watts
                + Operating (Nominal)
                      # 4.0 Watts
                + Sleep Mode
                      # 2.5 Watts

Environmental

    * ESD Protection (Air Discharge)
          o 25 kV
    * Humidity (Non-Condensing)
          o 5 - 95%
    * Temperature
          o Operating
                + 10 to 40 °C / 50 to 104 °F
          o Storage/Transport
                + -40 to 70 °C / -40 to 158 °F

Interfaces

    * Auxiliary Ports
          o Powered RS-232
    * IBM 46xx
    * Keyboard Wedge
    * OEM (IBM) USB
    * RS-232
    * USB

Optional Features

    * EAS Features
          o Checkpoint Systems
                + Integrated EAS hardware will work with Counterpoint IV, V, VI and VII models
          o Sensormatic
                + Good Read Acknowledgement
    * Value Added Features
          o Diagnostic Reporting
          o Productivity Index Reporting™ (PIR)

Physical Characteristics

    * Dimensions
          o 15.2 x 15.2 x 9.7 cm / 6.0 x 6.0 x 3.8 in
    * Weight
          o 1.1 kg / 2.5 lb

Reading Performance

    * Motor Speed
          o 6,000 rpm
    * Read Height
          o 15.2 cm / 6.0 in
    * Reading Indicators
          o Beeper (Adjustable Tone and Volume)
    * Scan Lines
          o 20

Safety & Regulatory

    * Agency Approvals
          o The product meets necessary safety and regulatory approvals for its intended use.
          o The Quick Reference Guide for this product can be referred to for a complete list of certifications.
    * Environmental Compliance
          o Complies to EU RoHS
    * Laser Classification
          o Caution Laser Radiation - Do not stare into beam
          o CDRH Class IIa
          o EN 60825-1 Class 1

Utilities

    * OPOS / JavaPOS
          o JavaPOS Utilities are available for download at no charge
          o OPOS Utilities are available for download at no charge

Warranty

    * 3-Year Factory Warranty
